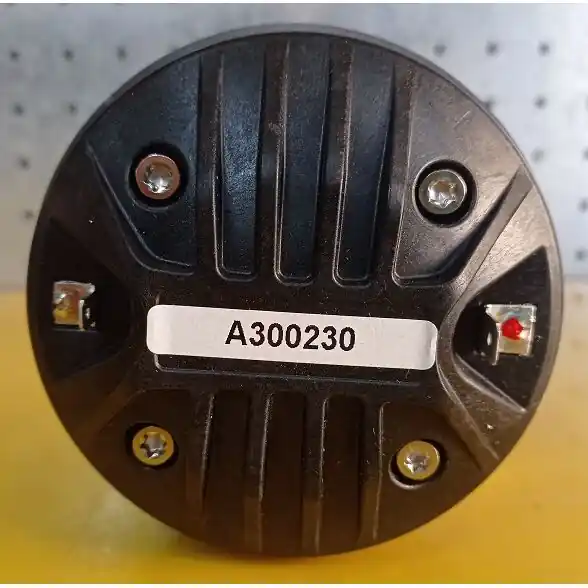

B&C Speacker DE 14 (Montarbo AS 114) Driver a Compressione 1" 60W 16 Ohm 105 dB
Driver originale per Montarbo Fire 10LP, 12LP e 15 LP
Driver Originale B&C Speacker Made in Italy, utilizzato in diverse Casse di fascia alta quali: Montarbo, FBT, RCF ecc.
DE14 60 W continuous program power capacity 1 horn throat diameter 36 mm (1.4 in) CCAW voice coil Polyester diaphragm 1500 - 18000 Hz response 105 dB sensitivity Specifications * Throat diameter 25 mm (1.0 in) Nominal impedance 16Minimum impedance 7.7Nominal power handling * 30 W Continuous power handling * 60 W Sensitivity (1W/1m) * 105.0 dB Frequency range 2 - 18 kHz Recommended crossover * 2.2 kHz Voice coil diameter 36 mm (1.4 in) Winding material Aluminium Inductance 0.14 mH Diaphragm material Mylar Flux density 1.45 T Magnet material Ferrite Mounting And Shipping Info Two M5 holes 180° on 76 mm (3 in) diameter Three M6 holes 120° on 57 mm (2.2 in) diameter Overall diameter 90 mm (3.5 in) Depth 49 mm (1.93 in) Net weight 1.1 kg.
