Descrizione del prodotto miniDSP UMIK-X-2 Multichannel microphone array
USB Multichannel microphone array, Up to 8ch audio recording, A2B wiring allows daisy-chaining of multiple arrays, REW integration for multichannel-analysis
Highlights
- Multichannel - Multipoint Microphone measurement system
- Up to 2xUMA4 MEMS microphone arrays can be daisy-chained
- Low Distortion, High AOP, High SNR Knowles MEMS (SPH0655LM4H-1)
- 24bit 44.1/48kHz recording, ASIO drivers
- USB to A2B® module for multichannel audio streaming over long cables (up to 40m)
- REW license for Multichannel measurement
Product Details
miniDSP UMIK-X-2 USB Multichannel microphone array
The UMIK-X consists of one to two UMA4 microphone modules and a USB-A2B interface to interface the modules to the computer. Between four and 16 microphones can therefore be connected. UMA4 modules are daisy-chained to each other using a single twisted-pair cable carrying Analog Devices A2B protocol for multichannel audio at 24-bit/44.1 or 48 kHz. A single cable for audio + power for up to 40m distance! Applications include environmental monitoring and distributed sound field measurement. The distributed omnidirectional microphones in the array allow quick measurement and analysis in applications such as room equalization and distributed subwoofer tuning.
The UMIK-X is a UAC-2 compliant interface that comes with its own ASIO driver and is driverless for macOS and Linux. For Windows, an ASIO driver is provided. Last but not least, the UMIK-X is compatible with the new multi-channel measurement capability of Room EQ Wizard (v5.20 and up). While this is normally a paid upgrade, a license for the upgrade is already included with your purchase.
The UMIK-X is now available for sale in 2 complete, ready to go packages to get up and running in no time! The basic package supports up to 8 x Channel recording (2 x UMA4 arrays).

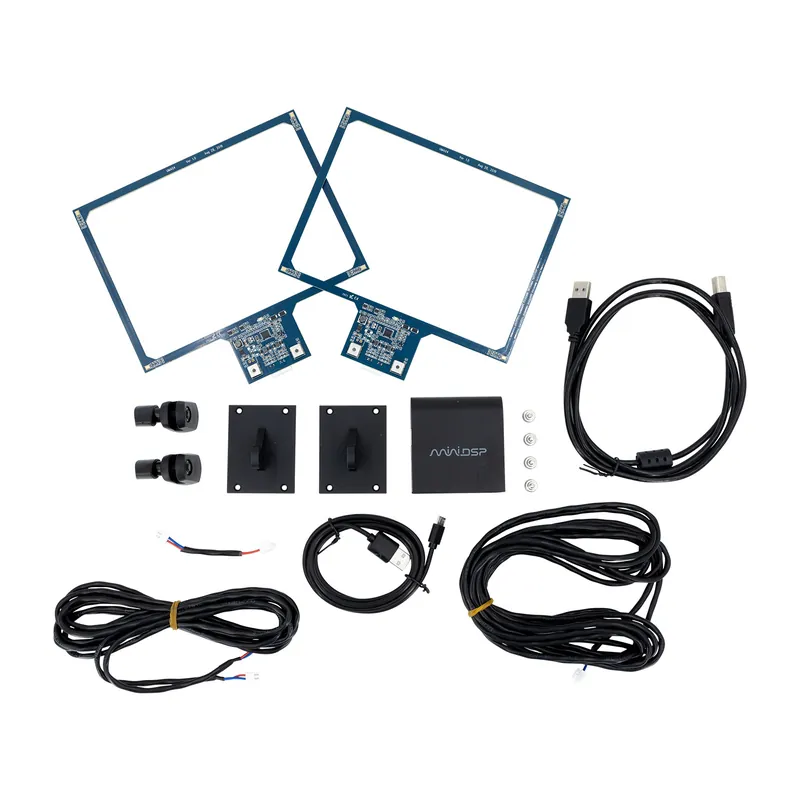

What's in the box?
- 1 x USB to A2B interface for multichannel audio streaming / Multichannel USB audio streaming
- 1 x License Code for Multichannel Audio Measurement with REW (100 USD worth)
- 1 x shielded USB cable (2m)
- A2B Twisted pair cable for microphone module daisy chainning: 2 x UMA4/XL package (1 x 5m, 1 x 3m , 1 x 5cm), 4 x UMA4/XL package (1 x 5m, 3 x 3m , 2x 5cm)
- Linking brackets to link 2 x UMA-4 microphone arrays together (if option selected)
PRODUCT SPECIFICATIONS
|
Item: USB to A2B interface |
|
|
USB streaming engine |
XMOS Multicore USB audio processor for UAC2 streaming |
|
USB audio capabilities |
USB audio recording for up to 16ch audio channels
|
|
Resolution / Sample rate |
24bit @ 44.1/48 kHz |
|
Analog devises A2B link |
Multichannel audio link via A2B protocol, Up to 40m long cable |
|
Toslink |
Toslink Out: Stereo link to Playback system / Toslink In: No enabled |
|
LED |
Power/Active link indication |
|
Power supply |
External 5V USB power supply |
|
Dimensions / Weight |
24x64x67mm / 90g |
|
Item: UMA-4 Microphone Module |
|
|
Analog devises A2B link |
Multichannel audio link via A2B protocol. Dual-port for Daisy chain up to 4 x UMA4 |
|
MEMS microphones |
4 x Knowles MEMS with low noise buffer and high-performance modulator:
|
|
Mounting |
Plastic clamp for microphone mounting |
|
Dimensions (mm) / Weight |
160x180mm / 27g |
