Descrizione

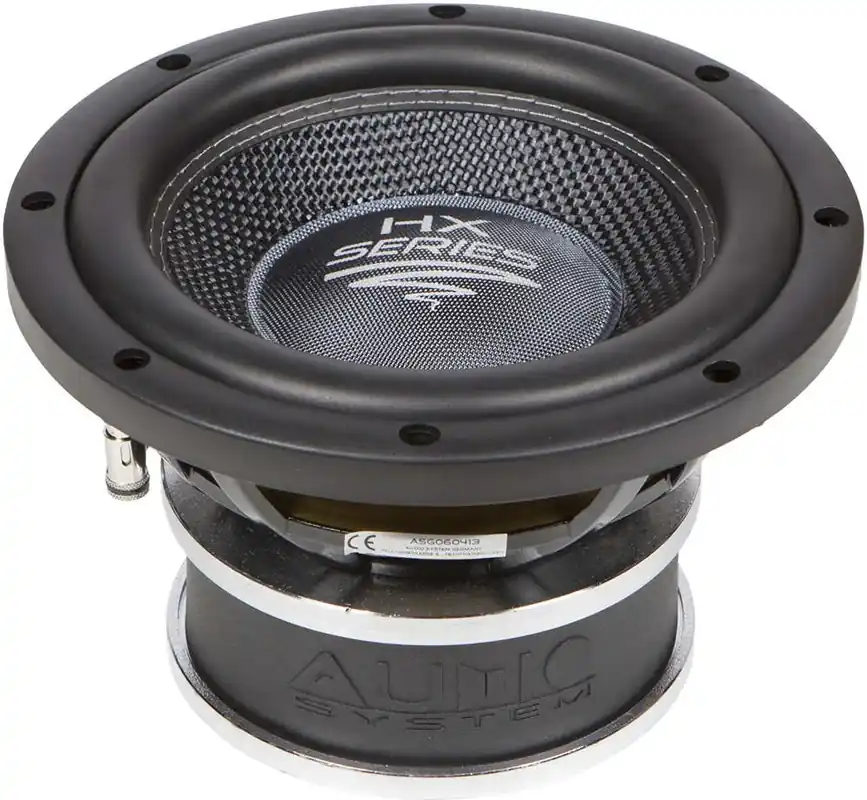

AUDIO SYSTEM HX 08 SQ Subwoofer HIGH END 8" 200 mm 4 ohm 250W RMS
AUDIO SYSTEM HX 08 SQ Subwoofer HIGH END 8" 200 mm 4 ohm 250W RMS
SISTEMA AUDIO HX 08 SQ Subwoofer da 20 cm, 4 ohm, 250WRMS
HX08 HX SQ-SQ woofer
200 mm subwoofer HIGH END
250 WRMS
1.5 '' delle bobine, terminali stabile
Vetro membrana della fibra / composto di carta, cestino cast e Connex Spider
Peso: 2,9 kg
Profondità: 104 millimetri
Diametro di montaggio: 185 mm
Impedenza: 4 ohm
specifiche
Rdc 3,5 Ohm
mq 4.68
qe 0.37
Qt 0.35
Fs 45 Hz
Vas 16 L
Mms 50 g
230μm Cms / N
BL 11.38 Tm
92dB SPL
Nominale 250 watt
Musica 300 watt
X-max (+ -) 8 mm
profondità 101 millimetri
Installazione di diametro 184 millimetri
HX-SERIES SQ Woofer
200 mm HIGH END Subwoofer
1,5" voice coil, stable terminals, 20-times ventilation system
stable GPC glass fibre/paper cone, cast basket and double sewn spandex
rubber with the cone, sewn silver lead wire, bigger magnet system with
HEM magnet (high-efficient-magnet), improved T-Joke and Pole-Plate
construction, progressive PPTA connex spider with more waves
very stable glass fibre dustcap
installation depth: 118 mm, installation Ø: 185 mm, outer Ø: 216 mm
weight: 4,8 kg, 300/250 Watt, impedance: 4 Ohm
