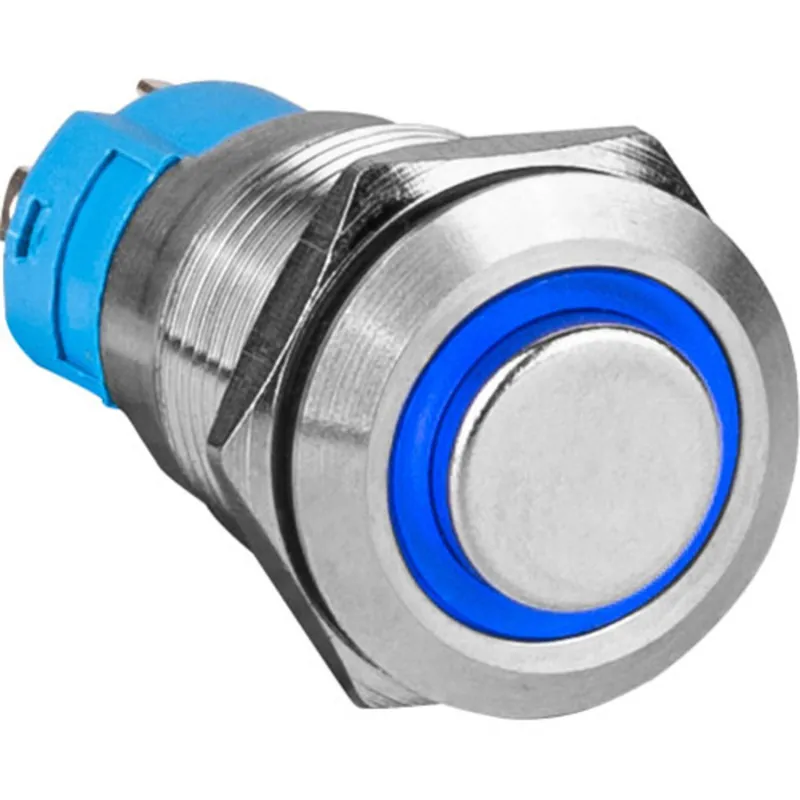

Descrizione del prodotto SPST N.O. 12mm Waterproof Raised Push Button Switch
Use this heavy duty, Stainless steel, anti-vandal push button N.O. switch for outdoor and other extreme condition applications. It has a built-in blue LED light ring for 3 VDC applications or higher voltage applications with added resistor (sold seperately).
Highlights
- Popular for use in kiosk applications, ticket dispensers, automotive, and industrial-type applications
- Stainless steel body and IP67 rating for extreme conditions
- Built-in 3 VDC blue ring illumination for low lit areas and connection identification
- RoHS certified
- Includes rubber washer for IP67 rating
- Easily mounts in 1/2" hole with included shaft nut
- + and - symbols on the switch body for polarity identification for the built-in LED
Product Details
SPST NO Momentary 12mm Stainless Steel Tamper/Waterproof Raised Push Button Switch with Blue Ring
This anti-vandal pushbutton switch is popular for use in kiosk applications, ticket dispensers, automotive, and industrial-type applications. The stainless steel body and push button stay looking great even with heavy duty use. The switch has an IP67 waterproof rating for extreme conditions indoors or outdoors when used with included rubber washer. This switch has a built-in 3 VDC blue LED light for locating in low lit areas and power identification. Use appropriate resistor for voltages higher than 3V.
Specifications: Built-in blue LED rating: 3 VDCSwitch rating: 1.5 to 250 VAC/DC and up to 5ARaised switch total size without terminals: 0.92" L x 0.54" Dia.Metal thread size: 0.47" Dia. x 0.40" LButton size: 0.3" Dia. x 0.06 HTerminal size: 0.08" W x 0.16" L x 0.02" D.
