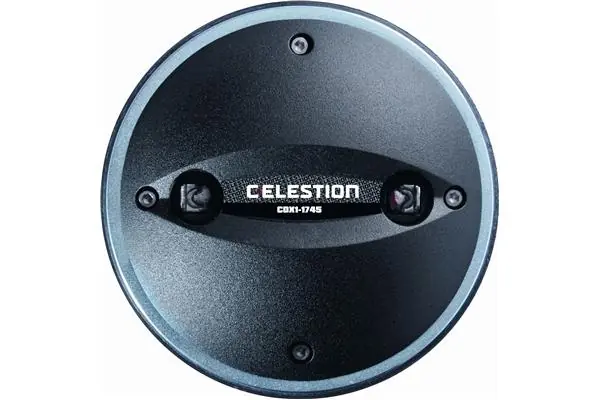

Home & Studio Recording Celestion CDX1-1745 40W 8ohm General Specifications
Power rating1: 40Wrms
Nominal impedance: 8ohm
Frequency range: 1200-20,000Hz
Sensitivity2: 110dB
Recommended min. crossover (12dB/oct): 2200Hz
Voice coil diameter: 44mm/1.75in
Voice coil material: Edgewound copper clad aluminium
Magnet type: Ferrite
Diaphragm and surround material: PETP film
Mounting Information
Width: 120mm/4.7in
Depth: 56mm/2.2in
Weight: 2.3kg/5.1lb
Fitting: Flange (2/3 M6 holes on 76/57mm, 3.0/2.24in PCD)
Throat exit: 25.4mm/1in
Packed Dimensions & Weight
Single pack size W x D x H: 140mm x 170mm x 70mm/5.5in x 6.7in x 2.8in
Single pack weight: 3kg/6.6lb
Multi pack (6) size W x D x H: 430mm x 370mm x 90mm/16.9in x 14.6in x 3.5in
Multi pack (6) weight: 14kg/31lb
